Features
- Surge Protector Device
- Suitable for high-voltage applications
- To protect equipment against high spike
- Induction over voltage and switching over voltage as per standard IS16104
Dimensional Details
Characteristics
- On day time the typical resistance : 2KO -1 OKO
- On night time the typical resistance : O.SMO -1.SMO
- On day time the typical voltage : 4V – 6V
- On night time the typical voltage : 9V – 13V
- Power consumption day time : up – 0.3W

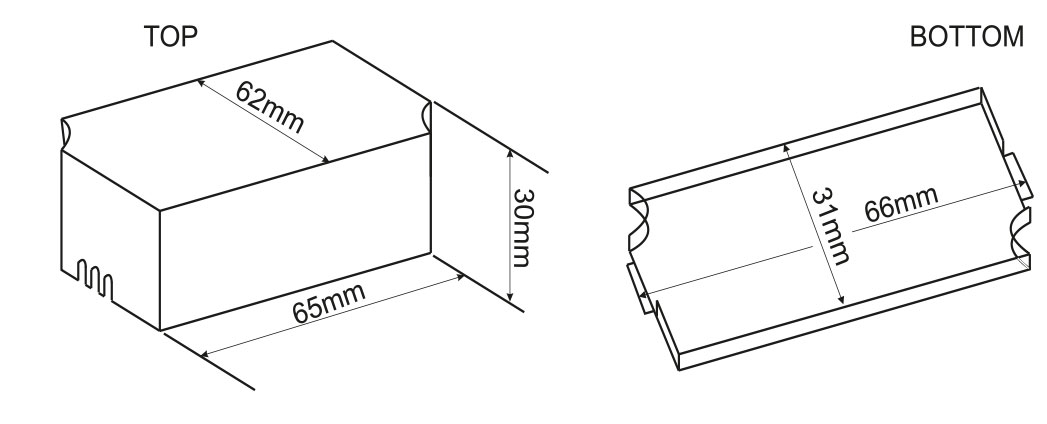

Dimensional Details
Mechanical Details
Note: All above ratings are absolute maximum ratings. Stress above these ratings may cause permanent damage to the device
