Technical Specifications
| Operating input voltage range | : | 100-300 Vac; 50/60 Hz |
| Over current protection | : | (+/-) 3% of Rated O/P Current |
| Thermal protection | : | Yes. 110°c +/- 10°C |
| Withstand Voltage | : | 440 Vac |
| Working temperature (ta) | : | -20°c to + 65°c |
| Case temperature (tc) | : | +85°c |
| SAFETY standards | : | IS 15885 (PART2/SEC13), |
| Connections | : | Push Connectors |
| Dimension (L*W*H)(MM) | : | 202.5*31.5*27 |

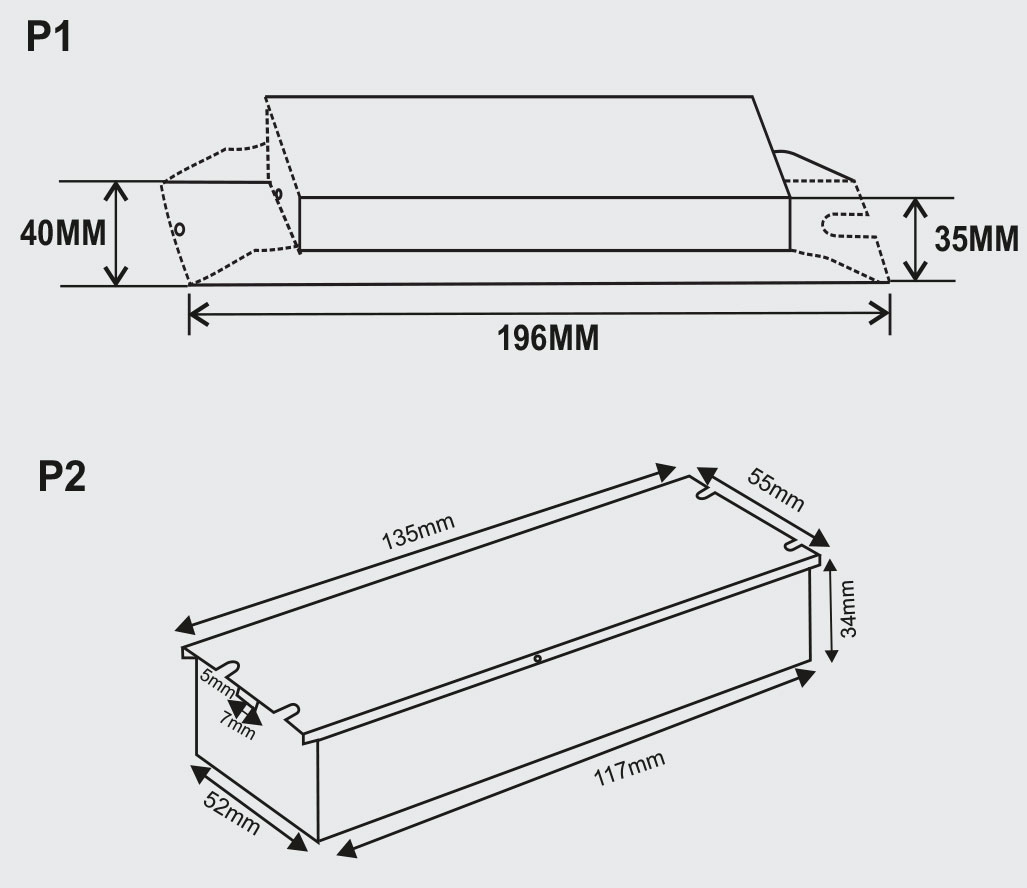

Dimensional Details
Features
- Protection : Output Short Circuit, No load
- IP 20 design Universal AC input (up to 300 Vac)/full range
- Meet 4 KV surge immunity level ( IEC61000- 4-5 )
- Compatible with 3S & 4S lithium-ion battery pack
- Compatible with 3S & 4S lithium-ion
- ferrous phosphate pack
- Class I power units I pass LPS
- Charging and battery full indication
- 3/5 Years Warranty
Electrical Specifications
Rigel X8 (A)
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 12-15 v | 1200mA | 18W |
Rigel X8 (B)
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 12 v | 1-5A | 12W – 60W |
