Technical Specifications
| Operating input voltage range | : | 110 -300 Vac; 50/60 Hz; 140-300 Vdc |
| Over voltage protection | : | Yes. 320 Vac ( +/- 10 V ) |
| Under voltage protection | Yes. 110 Vac ( +/- 10 V ) | |
| Thermal protection | : | Yes. 110°c +/- 10°c |
| THD | : | <10% |
| Efficiency | : | >88% |
| PF | : | > 0.98 |
| Standard loss | : | 0.3 Watt |
| Withstand Voltage | : | 440 Vac |
| Working temperature (ta) | : | -20°c to + 65°c |
| Case temperature (tc) | : | +85°c |
| SAFETY standards | : | : IS 15885 (PART2/SEC13), IEC 61347-2-13 : Ed1206-5 IEC 60950, IS 16104 |
| Connections | : | Connector for Input & Output |
| Dimension (L*W*H)(MM) | : | 251*33*27 |

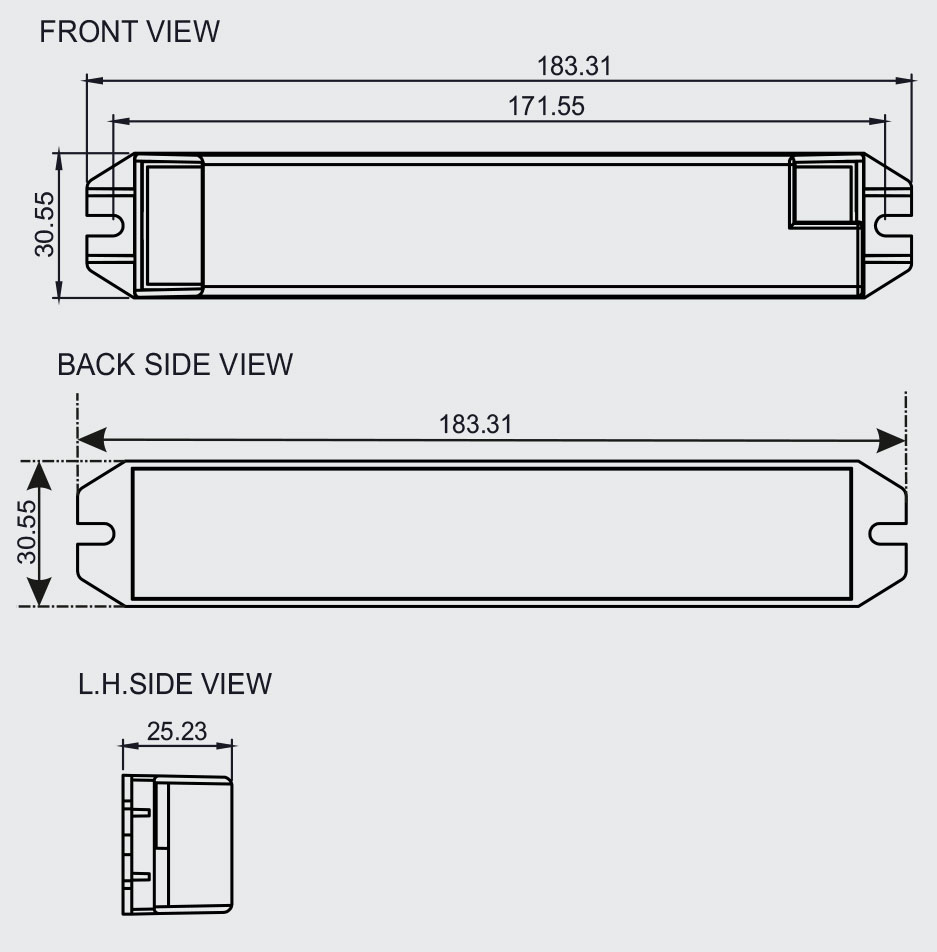

Dimensional Details
Features
- Protection : Output Short Circuit, Over Voltage, Under Voltage, No Load
- Built-in active PFC function
- IP 20 design Universal AC input (up to 300 Vac)/full range
- Meet 6 KV Surge Immunity Level (IEC61000-4-5)
- Class I Class power units I pass LPS
- Suitable for dry, damp & wet location
- Suitable for Indoor/Outdoor LED lighting
- Flickr free Driver
- Optional Dimming: 1-10V/PWM
- 3/5 Years Warranty
Electrical Specifications
RIGEL - X5 ( Input 50-65 watt )
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 24-40 v | 1200-14OO mA | 4OW – 60W |
| 02 | 40-60 v | 1200-1000 mA | 4OW – 60W |
| 03 | 60-80 v | 600-700 mA | 4OW – 60W |
