Rigel – X14
Technical Specifications
| Operating input voltage range | : | 100 -300 Vac; 50/60 Hz; 140-300 Vdc |
| Over voltage protection | : | Yes. 320 Vac ( +/- 10 V ) |
| Thermal protection | : | Yes. 110°C +/- 10°C |
| THD | : | < 25% |
| Efficiency | : | > 85% |
| PF | : | > 0.95 |
| Standard loss | : | 0.3 Watt |
| Withstand Voltage | : | 440 Vac |
| Working temperature (ta) | : | -20°c to + 50°c |
| Case temperature (tc) | : | +75°c |
| SAFETY standards | : | IS 15885 (PART2/SEC13), IEC 61347-2-13: Ed1206-5 IEC 60950, IS 16104 |
| Connections | : | Connector for Input & Output |
| Dimension (L*W*H)(MM) | : | 150*40*28 |

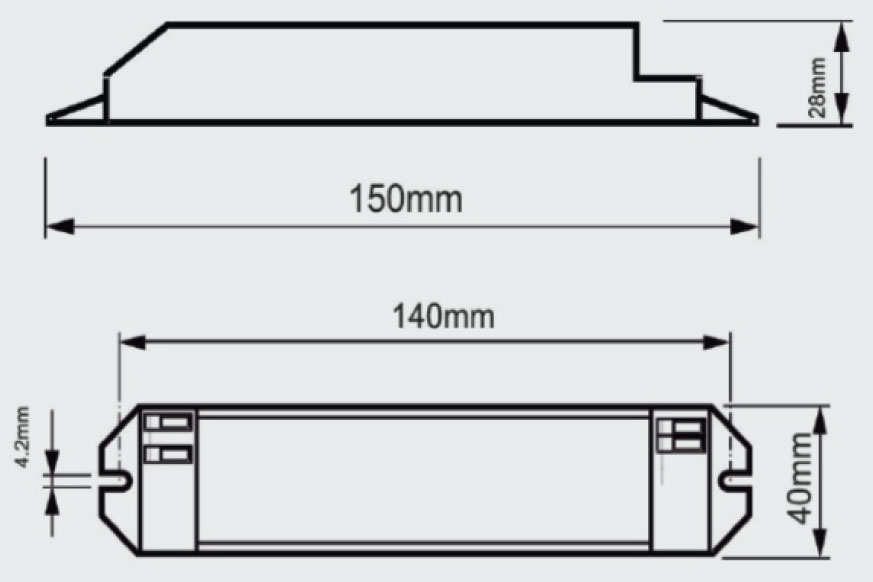

Dimensional Details
Features
- Protection : Output Short Circuit, Over voltage, No load
- Buit-ln Active PFC Function
- IP 20 design Universal AC input (up to 300 Vac)/full range
- Meet 4 KV Surge Immunity Level (IEC61000-4-5)
- Class 2 power units I pass LPS
- Suitable for dry, damp & wet location
- Suitable for Indoor LED lighting
- 3/5 Years Warranty
| Dimming Type | : | Phase cut (Triac dimming) |
| Dimming technique | : | Amplitude |
| Dimming range | : | 5% to 100% |
| Lowest Dimming current | : | 7% |
Electrical Specifications
P1- RIGEL- X14 (Input 20-40 watt)
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 25-40V | 500-1000 mA | 18W-36W |
| 02 | 50-70V | 300-500 mA | 18W-36W |
P2- RIGEL- X14 (Input 20-40 watt) With DIP Switch
| Configuration | ||||
PIN1 | PIN2 | Iout {mA} | Pout {W) | Vout (V) |
| OFF | OFF | 500mA | 20W | 25-40 V |
| OFF | ON | 600mA | 24W | |
| ON | OFF | 700mA | 28W | |
| ON | ON | 800mA | 32W | |
| Configuration | ||||
PIN1 | PIN2 | Iout {mA} | Pout {W) | Vout (V) |
| OFF | OFF | 700mA | 28W | 25-40 V |
| OFF | ON | 800mA | 32W | |
| ON | OFF | 900mA | 36W | |
| ON | ON | 1000mA | 40W | |
