Pollux – X5
Technical Specifications
| Operating input voltage range | : | 100-300 Vac; 50/60 Hz; 140-300 Vdc |
| Over voltage protection | : | Yes. 320 Vac ( +/- 10 V ) |
| Under voltage protection | : | Yes. 110 Vac ( +/- 10 V ) |
| Thermal protection | : | Yes. 110°c +/- 10°c |
| THD | : | <10% |
| Efficiency | : | >88% |
| PF | : | > 0.98 |
| Standard loss | : | 0.3 Watt |
| Withstand Voltage | : | 440 Vac |
| Working temperature (ta) | : | -20°c to + 65°c |
| Case temperature (tc) | : | +90°c |
| SAFETY standards | : | IS 15885 (PART2/SEC13), IEC 61347-2-13: |
| Connections | : | Wire for Input & Output |
| Dimension (L*W*H)(MM) | : | P1 = 187*66*40 (MS Body)
P2 = 187*68*40 (Aluminium Body) |

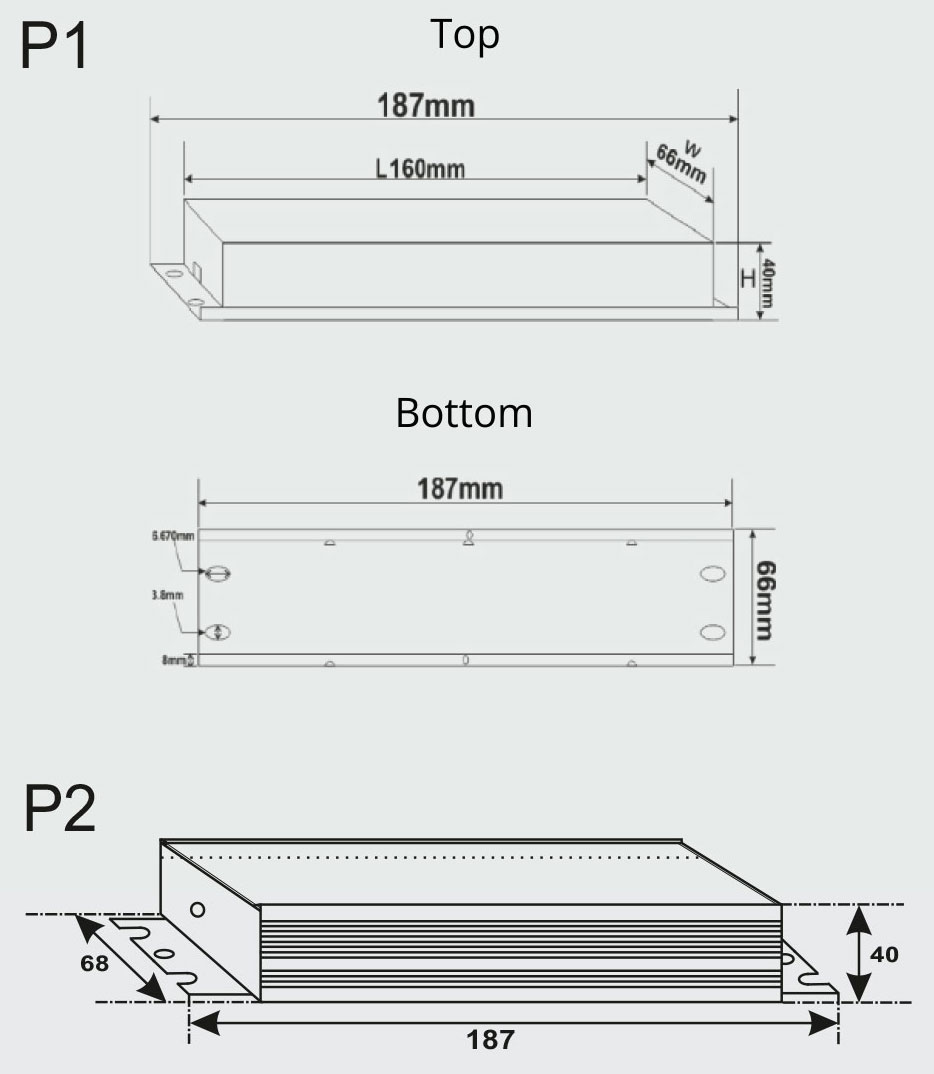

Dimensional Details
Features
- Protection : Output Short Circuit, Over Voltage, Under voltage, No load
- Built-in active PFC function
- IP20 design Universal AC input (up to 300 Vac)
- Meet 6 KV Surge Immunity Level (IEC61000-4-5)
- Class I power units I pass LPS
- Suitable for Outdoor LED Lighting
- Optional Dimming: 0/1-10V/PWM
- Ripple <5%
- 3/5 Years Warranty
Electrical Specifications
POLLUX - X5 (Input 140-180 Watt)
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 45-60 V | 2000-2800mA | 125 – 165W |
| 02 | 60-80 V | 1500-1800mA | 125 – 165W |
| 03 | 80-100 V | 1000-1700mA | 125 – 165W |
| 04 | 100-120 V | 1000-1400mA | 125 – 165W |
| 05 | 120-140 V | 1000-1200mA | 125 – 165W |
| 06 | 140-160 V | 800-1000mA | 125 – 165W |
| 07 | 160-180 V | 500-800mA | 125 – 165W |
| 08 | 200-216 V | 500-750mA | 125 – 165W |
