Ogle – X10
Technical Specifications
| Voltage (Un) | : | 240 Vac |
| Operating Voltage Range | : | 180-265 Vac |
| Frequency (Hz) | : | 50 I 60 Hz |
| Maximum Input Current | : | 0.08A |
| Input Power (W) | : | 18W |
| Power Factor @Full Load(PF) | : | > 0.5 |
| Efficiency | : | >80% |
| Working temperature (ta) | : | -20°c to + 50°c |
| Case temperature (tc) | : | +75°c |
| Dimension (L*W*H)(MM) | : | 80*40*22 |

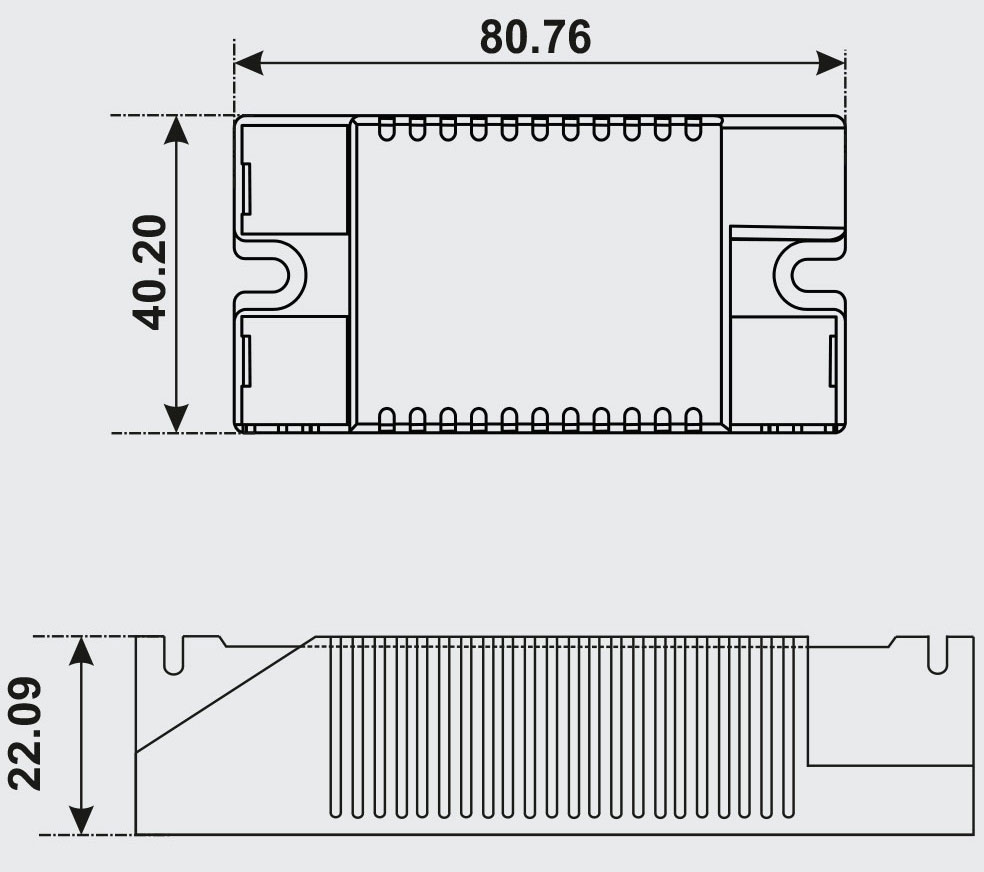

Dimensional Details
Features
- Protection : Output Short Circuit, Over Voltage, No Load.
- Wireless Dimming and CCT tuning by RF-2.4G Remote Controllers
- No need to install or attach other controllers
- Meet 4kV Surge Immunity Level (IEC61000-4-5)
- Groups control: 100 groups individually
- 4 Step dimming and CCT adjusting
- Step-less dimming and CCT Adjusting
- 3/5 Years Warranty
- Available with Wi-Fi module IOT connectivity with HRI IOS/Android mobile application
Electrical Specifications
OGLE - X10 ( Input 7-18 Watt)
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 25-40 v | 150-450 mA | 6W – 15W |
