Technical Specifications
| Operating input voltage range | : | 100-300 Vac; 50/60 Hz; 140-300 Vdc |
| Over voltage protection | : | Yes. 320 Vac ( +/- 10 V ) |
| Under voltage protection | : | Yes. 11O Vac ( +!- 1O V ) |
| Thermal protection | : | Yes. 110°c +/- 10°c |
| THO | : | < 10% |
| Efficiency | : | > 88% |
| PF | : | > 0.98 |
| Standard loss | : | 0.3 Watt |
| Withstand Voltage | : | 440 Vac |
| Working temperature (ta) | -20°c to +65°C | |
| Case temperature (tc) | +85°C | |
| SAFETY standards | : | IS 15885 (PART2/SEC13), IEC 61347-2-13: Ed1206-5 IEC 60950, IS 16104 |
| Connections | : | Wires for Input & Output |
| Dimension (L*W*H)(MM) | : | 190*75 |

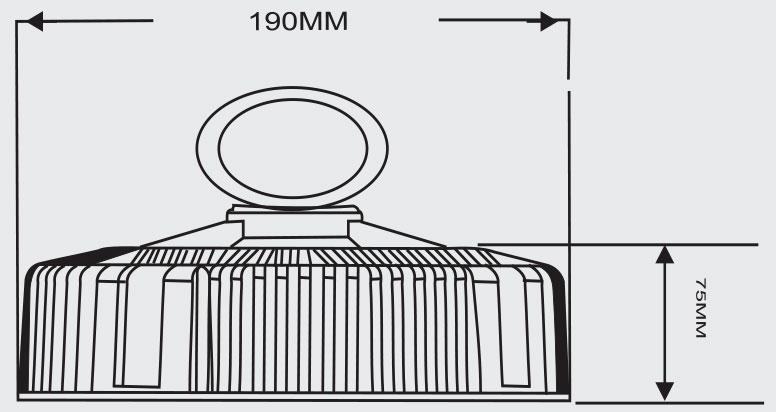

Dimensional Details
Features
- Protection : Output Short Circuit, Over Voltage, Under voltage, No load
- Built-in active PFC function
- IP 65 design Universal input (up to 300 Vac)/full range
- Meet 6 KV Surge Immunity Level (IEC61000-4-5)
- Class 1 power units / pass LPS
- Suitable for Indoor / Outdoor LED lighting
- Optional Dimming: 1-1OV/PWM
- 3/5 Years Warranty
Electrical Specifications
COPELLA - X4 ( Input 100-180 watt )
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 45-60 v | 2000-2800mA | 125 -170W |
| 02 | 60-80 v | 1500-1800mA | 125 -170W |
| 03 | 80-100 v | 1000-1700mA | 125 -170W |
| 04 | 100-120 v | 1000-1400mA | 125 -170W |
| 05 | 120-140 V | 1000-1200mA | 125 -170W |
| 06 | 140-160 v | 800-1000mA | 125 -170W |
| 07 | 160-180 v | 500-800mA | 125 -170W |
| 08 | 200-210 v | 500-750mA | 125 -170W |
