Technical Specifications
| Operating input voltage range | : | 100-300 Vac; 50/60 Hz; 140-300 Vdc |
| Over voltage protection | : | Yes. 320 Vac ( +/- 10 V ) |
| Under voltage protection | : | Yes. 11O Vac ( +!- 1O V ) |
| Thermal protection | : | Yes. 110°c +/- 10°c |
| THO | : | < 15% |
| Efficiency | : | > 88% |
| PF | : | > 0.95 |
| Standard loss | : | 0.3 Watt |
| Withstand Voltage | : | 440 Vac |
| Working temperature (ta) | -20°c to +50°C | |
| Case temperature (tc) | +75°C | |
| SAFETY standards | : | IS 15885 (PART2/SEC13), IEC 61347-2-13: Ed1206-5 IEC 60950, IS 16104 |
| Connections | : | Wires for Input & Output |
| Dimension (L*W*H)(MM) | : | 62*26, 56 (Dia) 50*23, 50(Dia) |

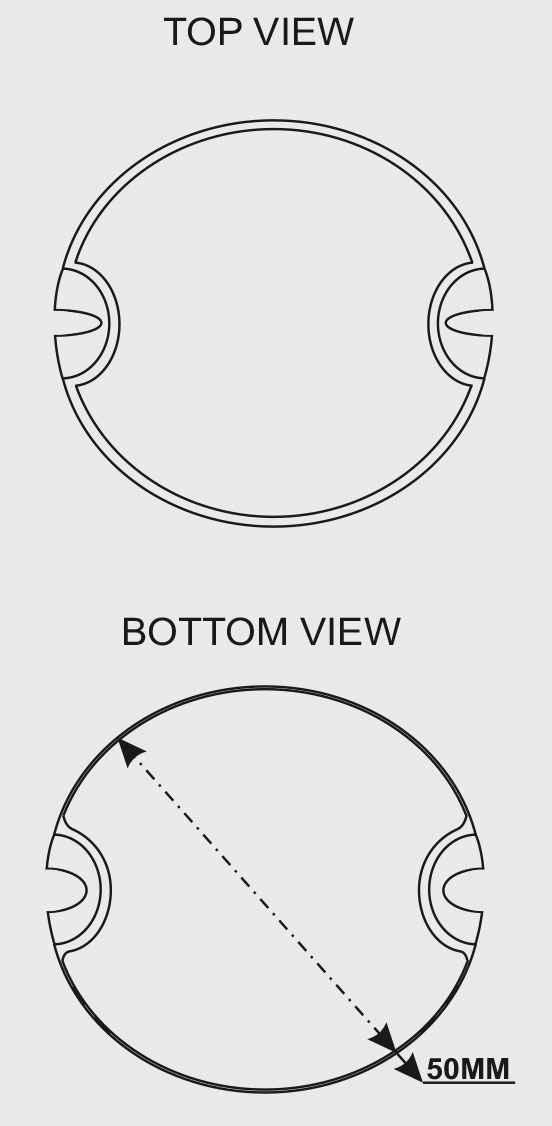

Dimensional Details
Features
- Protection : Output Short Circuit, Over Voltage, Under voltage, No load
- Built-in active PFC function
- IP 20/65 design Universal input (up to 300 Vac)/full range
- Meet 4 KV Surge Immunity Level (IEC61000-4-5)
- Class 2 power units I pass LPS
- Suitable for dry, damp & wet location
- Suitable for Indoor I Outdoor LED lighting
- 3 Years Warranty
Electrical Specifications
COPELLA - X2 ( Input 10-25 watt )
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 15-24 v | 300-550 mA | 7W – 22W |
| 02 | 25-40 v | 150-450 mA | 7W – 22W |
| 03 | 30-50 v | 150-350 mA | 7W – 22W |
| 04 | 50-70 v | 200-300 mA | 7W – 22W |
