Technical Specifications
- Operating input voltage range : 90-300 Vac; 50/60 Hz; 140-300 Vdc
- Thermal protection : Yes. 110°C (+/- 10°C)
- Working temperature (ta) : -20°C to +50°C
- Case temperature (tc) : +75°C
- SAFETY standards : 1S 15885 ( PART2 / SEC13)
- Connections : Wires for Input & Output
- Efficiency : <80%
- Dimension (L*W*H)(MM) : 57%28*21.3

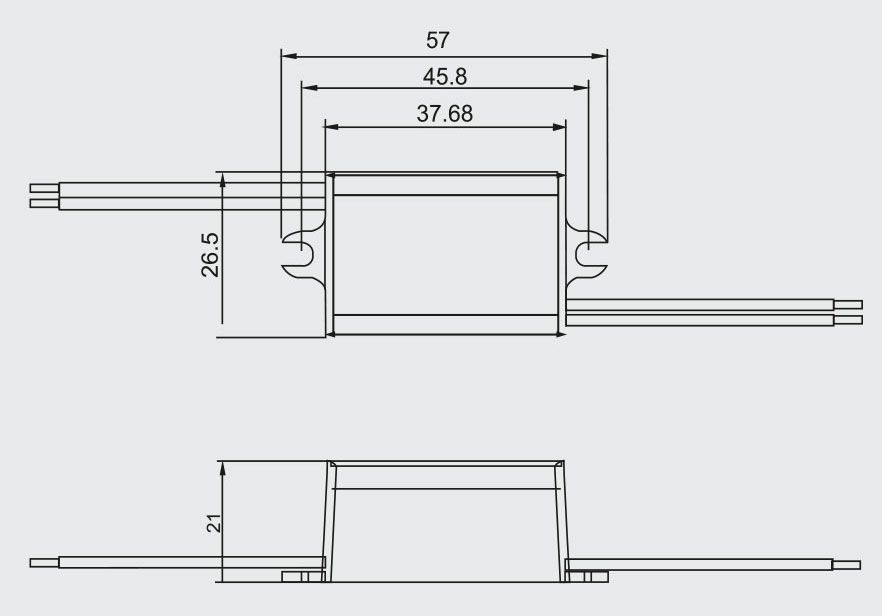

Dimensional Details
Features
- Protection : Output Short Circuit, No Load
- IP 20/65 design Universal AC input (up to 300 Vac)/full range
- Class 2 power units / pass LPS
- Cooling by free air convection
- Suitable for dry, damp & wet location
- Suitable for Indoor LED lighting
- 3 Years warranty
Electrical Specifications
OGLE - X1 ( Input 2-5 watt)
| Serial Number | Output Voltage Max Min | Output Current Max Min | Output Wattage Max Min |
|---|---|---|---|
| 01 | 03-05V | 500-700 mA | 1W – 4W |
| 02 | 25-40 V | 150 mA | 1W – 5W |
| 03 | 02-05V | 1000-1500 mA | 3W – 5W |
